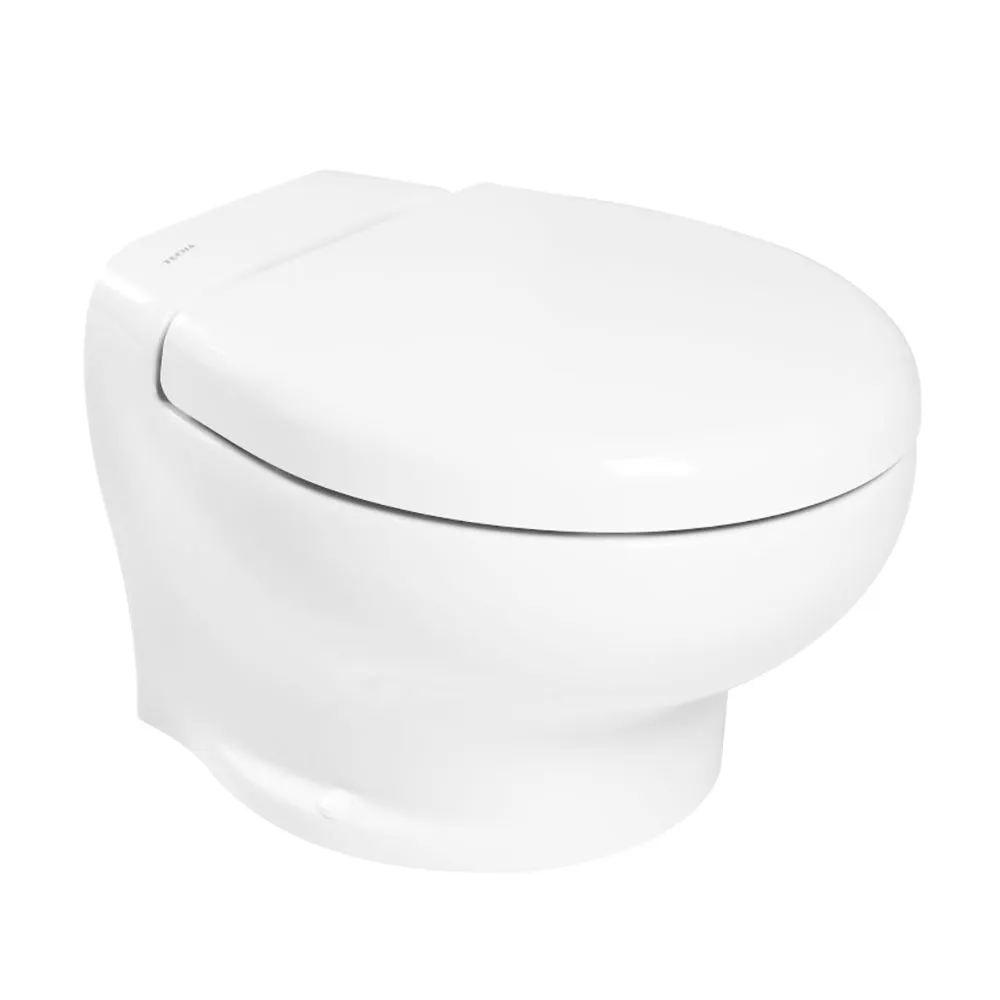

Nano Premium Plus Compact Toilet - 24V

The Tiny Turbo Toilet!

From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable to offer the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). Thetford Marine product development team has created a design that is extremely elegant, but also very flexible to install, thanks its compact size.

Features:

• Uses 2 check valves and this combined with a water trap ensures there are no odor issues
• Incredibly quiet operation
• Can use both raw water and pressure water flush
• Leaves a clean, dry bowl after every powerful flush
• Optional User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features (sold separately)

Technical Specifications:

• Material - Italian ceramic
• Flush Rate - 0.1-0.7 gallons per flush
• Outlet pump recommended fuse - 20A
• Outlet pump performance - 13.1ft vertical suction, 131.2ft horizontal suction
• Inlet solenoid (fresh water) power consumption - 10W
• Inlet pump (raw water) fuse - 4A
• Inlet pump (raw water) pressure - 45 PSI

In the Box:

• 1 - 24v Tecma Nano toilet
• 1 - Wall switch and controller
• 1 - Black wall switch bezel
• 1 - Bone wall switch bezel
• 2 - 1/4 10 x 2.5” stainless steel lag screws
• 2 - 1/4” stainless steel washer
• 2 - Plastic washers
• 2 - Bolt caps
• 2 - Hose clamps – 1 1/4”- 2”, stainless
• 1 - Full tank sensor
• 1 - Lower Discharge Check Valve (with straight and elbow fittings)
• 1 - Installation/Owner's Manual
