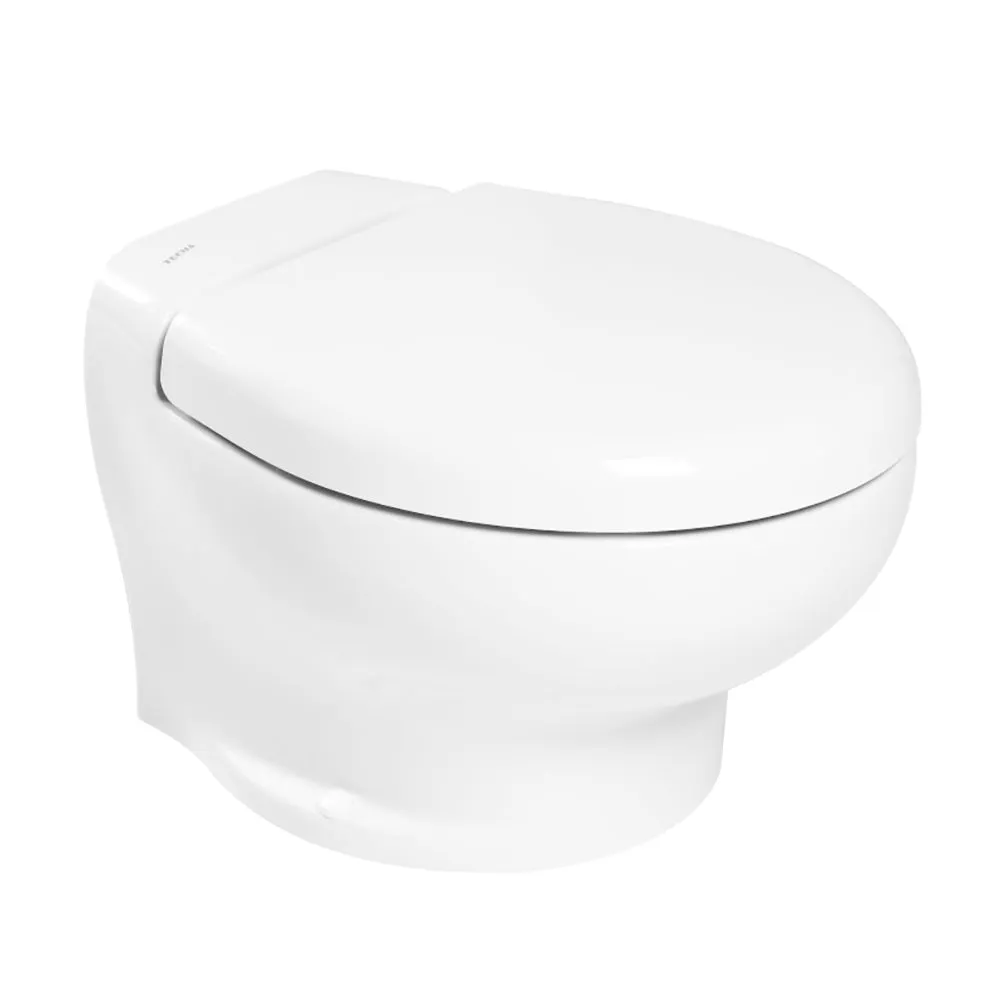

Nano Eco Compact Toilet - 12V
The Tiny Turbo Toilet!
From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable to offer the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). Thetford Marine product development team has created a design that is extremely elegant, but also very flexible to install, thanks to its compact size.
Features:
- Uses 2 check valves and this combined with a water trap ensures there are no odor issues
- Incredibly quiet operation
- Can use both raw water and pressure water flush
- Leaves a clean, dry bowl after every powerful flush
- Optional User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features (sold separately)
Technical Specifications:
- Material - Italian ceramic
- Flush Rate - 0.1-0.7 gallons per flush
- Outlet pump recommended fuse - 30A
- Outlet pump performance - 13.1ft vertical suction, 131.2ft horizontal suction
- Inlet solenoid (freshwater) power consumption - 9.5W
- Inlet pump (raw water) fuse - 8A
- Inlet pump (raw water) pressure - 45 PSI
Parts List:
- Tecma Toilette with built-in macerator (white, 12V/24V)
- Floor mounting hardware
- Lower discharge check valve (Double Duck Bill)
- Controller Touch SFT
- Wall switch Touch SFT
- Installation/Owner’s Manual (QR Code)
